Description
System Description

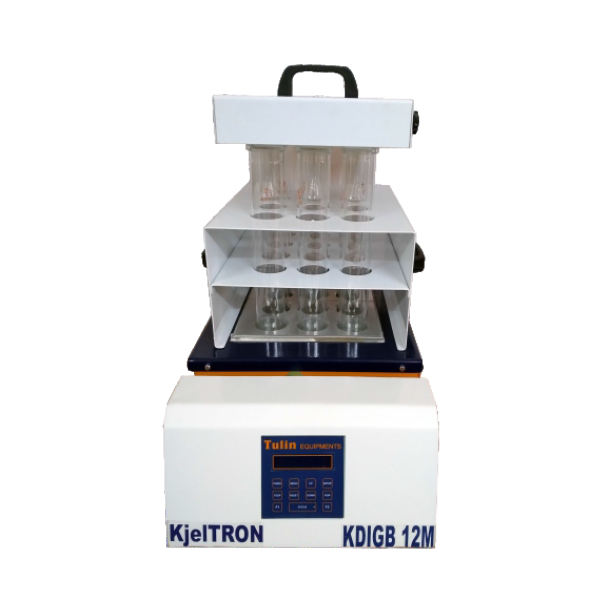

- Model- KDIGB 12M: Superior Auto Sequencing Microprocessor Based Twelve Sample Macro Tube Digestion Block With Programmable Controller Digital LCD Display System.
- MOC: Chemical Resistant Anti Corrosive Epoxy Powder coated Stainless Steel Body
- Two tier console: Compact design to place Insert rack and Manifold Rack with exhaust manifold & drip tray. Electrical Requirement:230V/50Hz mains.
- Macro Digestion tubes with capacity 250 ml volume.
- Sample Size :Solid Sample 0.1 to 5gm Depends upon the Sample.
- Heaters: Rapid & High Heating casted Aluminum Heaters for Even Heating.
- System have a Compatible to use different volume Tubes.
Superior Features
- Inbuilt Auto Sequence allows 10 Intelligent Program System 5 Desire Ramp/Sequence Steps
- Temperature Controller Range: Ambient to 450° C, Temperature Accuracy: ±1°C.
- Time & Temperature Readout in the Digital LCD Display System.
- Programmable based system control with method Library, insert disk, drip tray, Exhaust manifold, Shield plate for temperature cut-off.
- Time setting per Ramp (Step):1-999 minute.
- Separate isolated Temperature Controller in a control tower for digestion heat zone and acid reaction chamber for safe operation
- All essential accessories like Digestion Tubes, acid proof SS Insert Rack, Exhaust Manifold, SS Stand Suction Assembly for safe removal of acid fumes with easy drain Suction pump wall mounted in the System For safe removal of acid fumes & easy drain.
Safety Features
- Auto Calibration of casted Heater Temperature, Automatic Safety Features like over Temperature Protection
- Auto Sensor Break Protection, Auto Over Temp. Cut off, Acoustic & Visual Error Indication, Auto Sensor Break Detection.
