Description

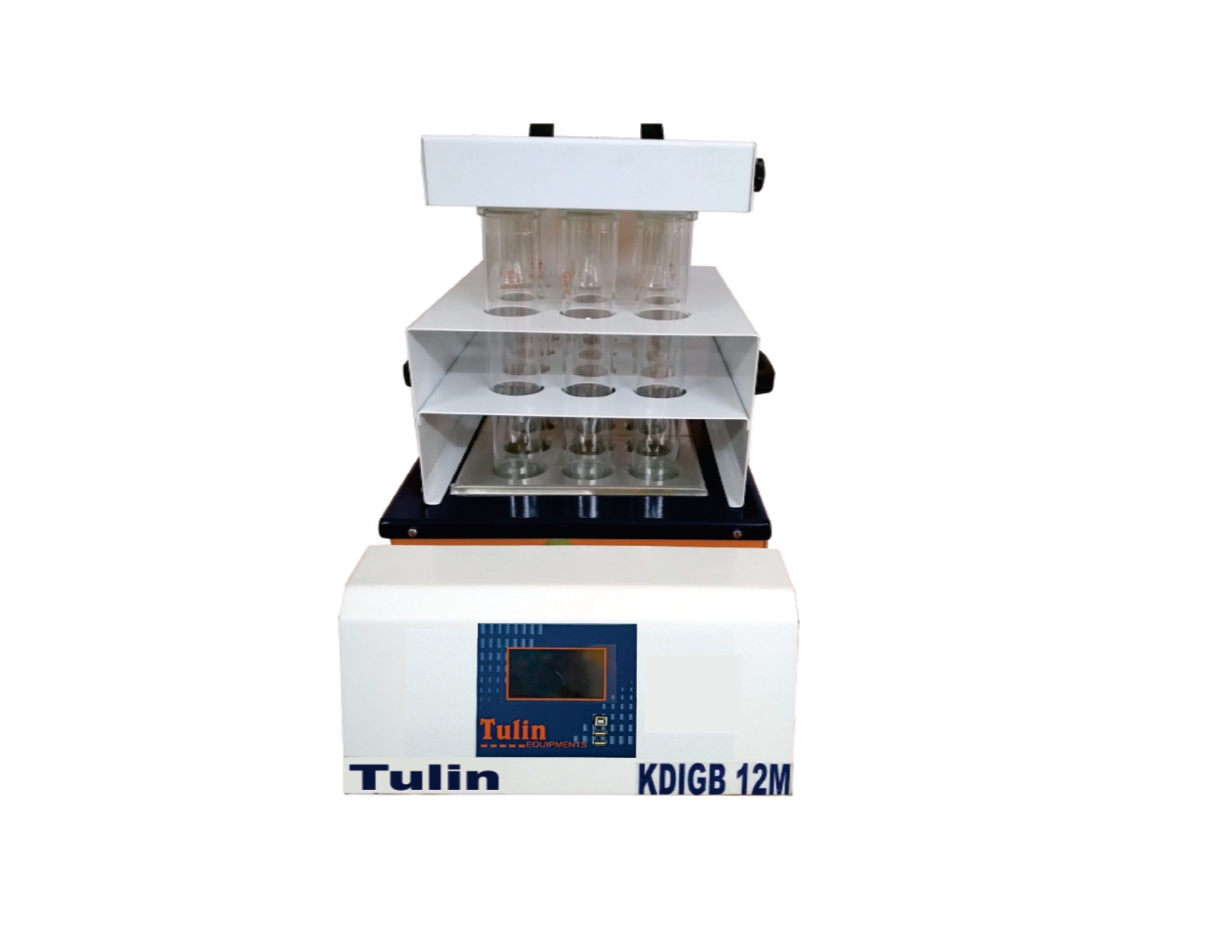

| SYSTEM | MACRO BLOCK DIGESTION |
| MODELS | KDIGB 12M |
| No. of Samples | 12 |
| Tube Capacity | Brand Marked 250 – 300 ml Digestion Tubes |
| Tube Dimension | 300 x 42mm |
| Digestion Time | 30 – 60 minutes depends upon the sample type |
| Temp. Controller | PID Micro Processor Controller with Auto Tuning & Calibration Facility |
| Temp.Range | Room Temperature 35oc to 450oC / 750oC (Temperature Accuracy + 0.5%) |
| Temp. Setting | Anti Corrosive Aesthetic Soft Touch Membrane Keys |
| Temp. Display | Micro Processor Ramp Controller with Graphical / Touch Screen |
| Timer Range | 0 to 999 sec / min / hr ( Display Set Time & Actual Time ) |
| Customize Program | 10 to 100 Micro Processor User Storage Program with 6 to 30 Sequence Steps (Ramp) |
| Heating Block | Aluminum Block with Holes & Insulated with High Grade Glass Wool ( Protects user from Skin Contact) |
| Heater | Casted Aluminum Alloy Block Heater / Infra Red Heater |
| Tube Stand | Stainless Steel Tube rack with cooling stand & Polyimide Insulated Handles |
| Fume Exhaust | Exhaust Manifold System with TFM Adopters with SS Auto Spring Clamps |
| Power | 2800W |
| Suction Source | Kjel Suction Assembly with Jet Suction Pump & Plexi Glass view window |
| Elec. Requirement | 180 – 240v / 50 – 60Hz – AC Mains |
| Safety Features | Auto over temperature protection / Auto Error Indication / Sensor break protection / Auto Heater Cut off with Visual Display, Buzzer Indication & User Alarm ( Memory Backup – Unique ) |
| Connectivity | Rs485 / 232 / USB interface to PC / Laptop – Optional (Data Control) |
| Superior Features | Data Logger with Memory Port, Memory stick, Auto lift Facility, Remote Control Module, wireless Mouse, Software Graphical Presentation for Temp. & Time Gradient, Data Convert Facility, Displays the % power, Printer Option, User Login Feature, Facility of Integration with Tulin Scrubber System etc., |
